4.9FT/6FT/6.6FT Stainless Steel Horseshoe Style Single Wheel Barn Sliding Doors Hardware Track for Wood Door

4.9FT/6FT/6.6FT Stainless Steel Horseshoe Style Single Wheel Barn Sliding Doors Hardware Track for Wood Door Item NO.: SA03L2

Write a Review
US$ 78.00
Rail Length
150cm kit 183cm kit 200cm kit
Ships From
China
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • Surface Finishing: Finished
  • Main Material: stainless steel
  • Model Number: SA03L2
  • Charge Unit: Set
  • Open Style: Sliding
  • Opening Method: Side Opening
  • Position: Interior
  • Type: Sliding Doors
  • Sliding Door Type: Partition Doors
  • Door Material: Composite
  • Door Type: Polymer
  • load bearing: 175kg
  • door thickness: 40-45mm
  • Mounted: Wall
Product Name 4.9FT/6FT/6.6FT Stainless Steel Horseshoe Style Single Wheel Barn Sliding Doors Hardware Track for Wood Door
Item NO. SA03L2
Weight 9.5 kg = 20.9439 lb = 335.1026 oz
Category Sliding barn door hardware kit > Stainless steel sliding door system kit
Tag Stainless Steel Horseshoe Style Single Wheel Barn Sliding Doors
Brand Gerrit
Creation Time 2020-06-29


1000


【Stainless Metal Material】: The metal parts of this hardware kit for sliding doors are all made of superior stainless steel, light-weight, rust-proof, strong and sturdy.
【Large Load Capacity】: Due to the excellent structure especially for bearing heavy duty, this set of hardware is capable of holding the maximum load of 220 LBS, basically meeting the needs of most doors.
【Practical Necessity for Sliding Doors】: This set of hardware is specially designed to efficiently install sliding doors for bedroom, bathroom, kitchen, etc, saving much space and time. Moves smoothly no noise.
【Easy Assembly】: With a step-by-step user manual, you can install your door with this sliding door hardware kit on your own as each part is previously marked and drilled.

Specifications

1. 5 years warranty for whole set
2. Passed official tests of 20,000 times running and 175KG loading
3. GBP100,000 of libility


Product Information

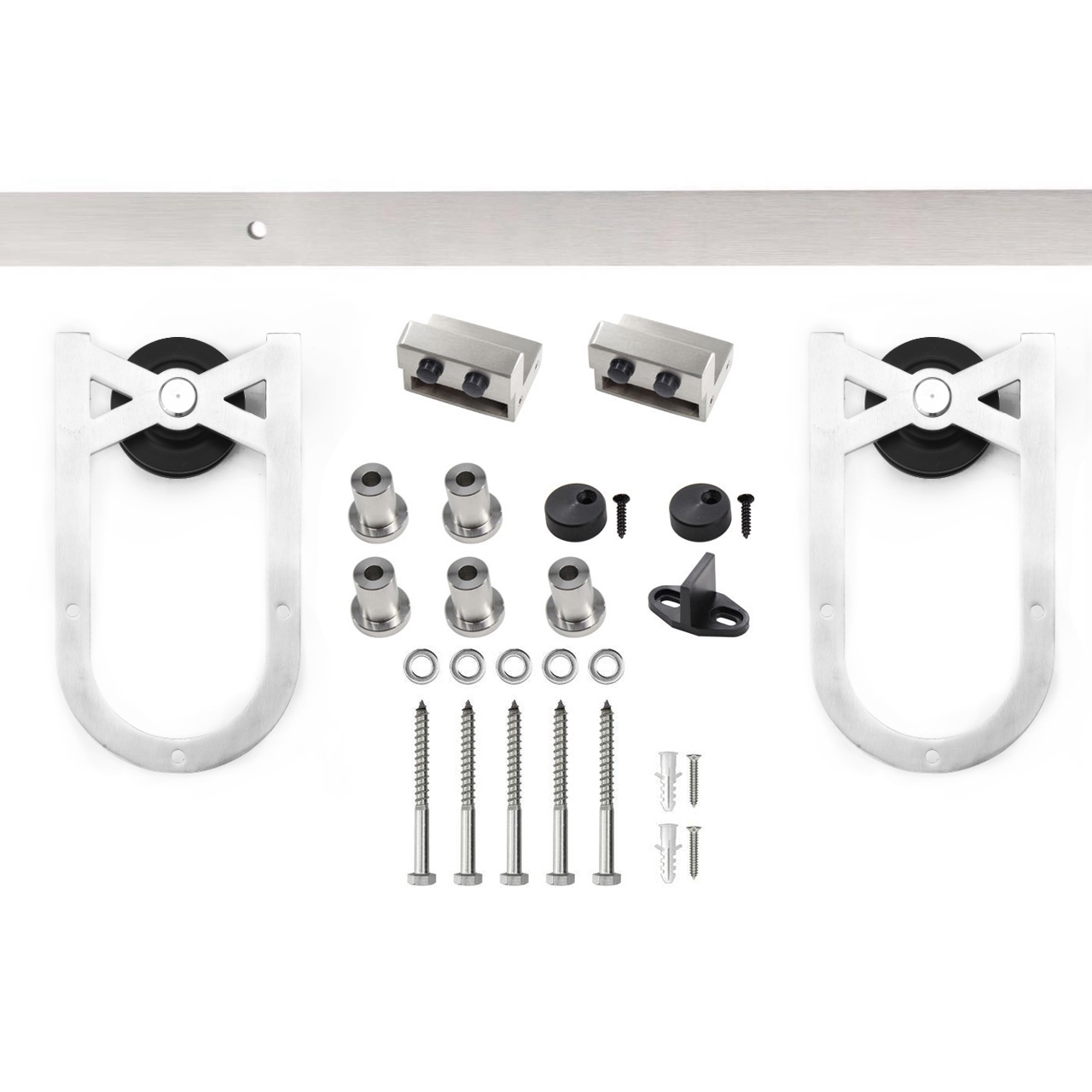

Only hardware,no door panel.One complete set include below parts.

Item

Name


150cm rail

(Quantity/set)

183cm rail

(Quantity/set)

200cm rail

(Quantity/set)

Description

Roller

HTB1.t.TdgoQMeJjy0Fn7628gFXaR

 2

 2

 2

For doors thickness 40-45mm.Wheels made by POM,more Smooth and quiet.

Stopper

HTB125xta7CWBuNjy0Faq6xUlXXaG

 2

 2

 2

For both ends of rail and prevent rollers out of control.Our stopper is the most compact for rail with advanced production process.

Rail

HTB1ierdXTmWBKNjSZFBq6xxUFXaj

 1

 1

 1

Rail length should be double than door width.Now we only supply 150/183/200cm rail in store.If you need other size,please contact us.

Screws&Nuts

HTB1eOXka3aTBuNjSszfq6xgfpXa4

 4

 4

 5

 After completed installation,the distance between door and wall is about 2 cm. Tapping screw will be provided for you.

Anti Jump

HTB1By8ka3aTBuNjSszfq6xgfpXas

 2

 2

 2

For top of doors and prevent door jump out of rail.

Floor guide

HTB1az5Ta.R1BeNjy0Fmq6z0wVXaa

 1

 1

 1

For the bottom of doors,you need cut open slot(W:0.7-1cm,H:2cm) here first and instal it on floor.

Product Packaging



Why us

1.Manufactory-Best price and multiple payment terms.

2.Professional and experienced-We specializes in doors and hardware for more than 10 years and passes factory audits by official and third party.

3.Completely verified-We are fully qualified and obtains relevant quality certifications such as BMHA,CE and FSC.

4.Customized design-We offers customized design services and technical drawing support.

5.Delivery in time-Scientific management system and large production capacity.

6.Well after service-Dedicated after-sales service team and well developed oversea warehouses to take care of your problems in no time.


IMG_4311-tile
